ArcGIS REST Services Directory
Home > services > Boundaries > i03_DAU_county_cnty2018 (FeatureServer) > i03_DAU_county_cnty2018 API Reference
JSON

Layer: i03_DAU_county_cnty2018 (ID: 0)

View In:   ArcGIS Online Map Viewer

Name: i03_DAU_county_cnty2018

Display Field: DAU_NAME

Type: Feature Layer

Geometry Type: esriGeometryPolygon

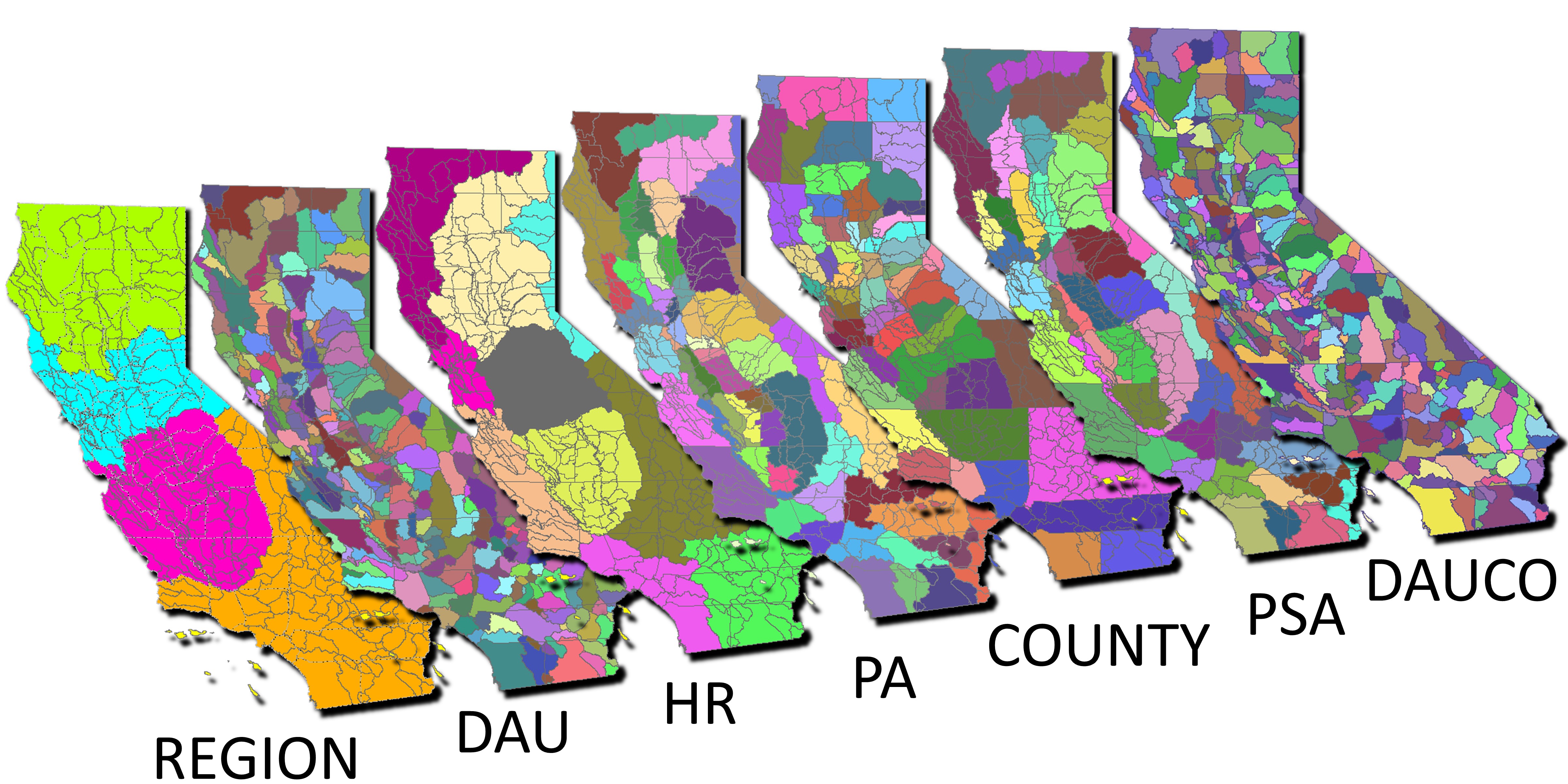

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>Detailed Analysis Unit-(DAU) Convergence via County Boundary cnty18_1 for Cal-Fire, (*See metadata for CAL-FIRE cnty18_1), State of California. </SPAN></P><P><SPAN>The existing DAU boundaries were aligned with cnty18_1 feature class.</SPAN></P><P><SPAN>Originally a collaboration by Department of Water Resources, Region Office personnel, Michael L. Serna, NRO, Jason Harbaugh - NCRO, Cynthia Moffett - SCRO and Robert Fastenau - SRO with the final merge of all data into a cohesive feature class to create i03_DAU_COUNTY_cnty24k09 alignment which has been updated to create i03_DAU_COUNTY_cnty18_1.</SPAN></P><P><SPAN>This version was derived from a preexisting “dau_v2_105, 27, i03_DAU_COUNTY_cnty24k09” Detailed Analysis Unit feature class's and aligned with Cal-Fire's 2018 boundary.</SPAN></P><P><SPAN>Manmade structures such as piers and breakers, small islands and coastal rocks have been removed from this version. Inlets waters are listed on the coast only.</SPAN></P><P><SPAN>These features are reachable by County\DAU. This allows the county boundaries, the DAU boundaries and the State of California Boundary to match Cal-Fire cnty18_1.</SPAN></P><P STYLE="text-align:Center;"><SPAN STYLE="font-weight:bold;">DAU Background</SPAN></P><P><SPAN>The first investigation of California's water resources began in 1873 when President Ulysses S. Grant commissioned an investigation by Colonel B. S. Alexander of the U.S. Army Corps of Engineers. The state followed with its own study in 1878 when the State Engineer's office was created and filled by William Hammond Hall. The concept of a statewide water development project was first raised in 1919 by Lt. Robert B. Marshall of the U.S. Geological Survey. </SPAN></P><P><SPAN>In 1931, State Engineer Edward Hyatt introduced a report identifying the facilities required and the economic means to accomplish a north-to-south water transfer. Called the "State Water Plan", the report took nine years to prepare. To implement the plan, the Legislature passed the Central Valley Act of 1933, which authorized the project. Due to lack of funds, the federal government took over the CVP as a public works project to provide jobs and its construction began in 1935.</SPAN></P><P><SPAN>In 1945, the California Legislature authorized an investigation of statewide water resources and in 1947, the California Legislature requested that an investigation be conducted of the water resources as well as present and future water needs for all hydrologic regions in the State. Accordingly, DWR and its predecessor agencies began to collect the urban and agricultural land use and water use data that serve as the basis for the computations of current and projected water uses. </SPAN></P><P><SPAN>The work, conducted by the Division of Water Resources (DWR’s predecessor) under the Department of Public Works, led to the publication of three important bulletins: Bulletin 1 (1951), "Water Resources of California," a collection of data on precipitation, unimpaired stream flows, flood flows and frequency, and water quality statewide; Bulletin 2 (1955), "Water Utilization and Requirements of California," estimates of water uses and forecasts of "ultimate" water needs; and Bulletin 3 (1957), "The California Water Plan," plans for full practical development of California’s water resources, both by local projects and a major State project to meet the State's ultimate needs. (**See brief addendum below** “The Development of Boundaries for Hydrologic Studies for the Sacramento Valley Region”)</SPAN></P><P><SPAN>DWR subdivided California into study areas for planning purposes. The largest study areas are the ten hydrologic regions (HR), corresponding to the State’s major drainage basins. The next levels of delineation are the Planning Areas (PA), which in turn are composed of multiple detailed analysis units (DAU). The DAUs are often split by county boundaries, so are the smallest study areas used by DWR. </SPAN></P><P><SPAN>The DAU/counties are used for estimating water demand by agricultural crops and other surfaces for water resources planning. Under current guidelines, each DAU/County has multiple crop and land-use categories. Many planning studies begin at the DAU or PA level, and the results are aggregated into hydrologic regions for presentation.</SPAN></P><P><SPAN>Since 1950 DWR has conducted over 250 land use surveys of all or parts of California's 58 counties. Early land use surveys were recorded on paper maps of USGS 7.5' quadrangles. In 1986, DWR began to develop georeferenced digital maps of land use survey data, which are available for download. Long term goals for this program is to survey land use more frequently and efficiently using satellite imagery, high elevation digital imagery, local sources of data, and remote sensing in conjunction with field surveys.</SPAN></P><P><SPAN>There are currently 58 counties and 278 DAUs in California.</SPAN></P><P><SPAN>Due to some DAUs being split by county lines, the total number of DAU’s identifiable via DAU by County is 782.</SPAN></P><P STYLE="text-align:Center;"><SPAN>**ADDENDUM**</SPAN></P><P STYLE="text-align:Center;"><SPAN STYLE="font-weight:bold;">The Development of Boundaries for Hydrologic Studies for the Sacramento Valley Region</SPAN></P><P><SPAN>[Detailed Analysis Units made up of a grouping of the Depletion Study Drainage Areas (DSA) boundaries occurred on the Eastern Foothills and Mountains within the Sacramento Region. Other DSA’s were divided into two or more DAU’s; for example, DSA 58 (Redding Basin) was divided into 3 DAU’s; 143,141, and 145. Mountain areas on both the east and west side of the Sacramento River below Shasta Dam went from ridge top to ridge top, or topographic highs. If available, boundaries were set adjacent to stream gages located at the low point of rivers and major creek drainages.</SPAN></P><P><SPAN>Later, as the DAU’s were developed, some of the smaller watershed DSA boundaries in the foothill and mountain areas were grouped. The Pit River DSA was split so water use in the larger valleys (Alturas area, Big Valley, Fall River Valley, Hat Creek) could be analyzed. A change in the boundary of the Sacramento Region mountain area occurred at this time when Goose Lake near the Oregon State Line was included as part of the Sacramento Region.</SPAN></P><P><SPAN>The Sacramento Valley Floor hydrologic boundary was at the edge of the alluvial soils and slightly modified to follow the water bearing sediments to a depth of 200 feet or more. Stream gages were located on incoming streams and used as an exception to the alluvial soil boundary. Another exception to the alluvial boundary was the inclusion of the foothills between Red Bluff and the Redding Basin. Modifications of the valley floor exterior boundary were made to facilitate analysis; some areas at the northern end of the valley followed section lines or other established boundaries.</SPAN></P><P><SPAN>Valley floor boundaries, as originally shown in Bulletin 2, Water Utilization and Requirements of California, 1955 were based on physical topographic features such as ridges even if they only rise a few feet between basins and/or drainage areas. A few boundaries were based on drainage canals. The Joint DWR-USBR Depletion Study Drainage Areas (DSA) used drainage areas where topographic highs drained into one drainage basin. Some areas were difficult to study, particularly in areas transected by major rivers. Depletion Study Drainage Areas containing large rivers were separated into two DAU’s; one on each side of the river. This made it easier to analyze water source, water supply, and water use and drainage outflow from the DAU.</SPAN></P><P><SPAN>Many of the DAUs that consist of natural drainage basins have stream gages located at outfall gates, which provided an accurate estimate of water leaving the unit. Detailed Analysis Units based on political boundaries or other criteria are much more difficult to analyze than those units that follow natural drainage basins.]</SPAN></P><P STYLE="text-align:Center;"><SPAN>**END ADDENDUM**</SPAN></P><TABLE><TBODY><TR><TD><P><SPAN><SPAN>Fields</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Data Type</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Description</SPAN></SPAN></P></TD></TR><TR><TD><P><SPAN><SPAN>ACRES</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Double</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Acres of Polygonal Feature –Not Dynamic</SPAN></SPAN></P></TD></TR><TR><TD><P><SPAN><SPAN>Counties</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Text</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Counties (DAU)</SPAN></SPAN></P></TD></TR><TR><TD><P><SPAN><SPAN>COUNTY NAME</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Text</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>County Name, County</SPAN></SPAN></P></TD></TR><TR><TD><P><SPAN><SPAN>COUNTY_ABBREV</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Text</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>County Abbreviation </SPAN></SPAN></P></TD></TR><TR><TD><P><SPAN><SPAN>COUNTY_CODE</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Text</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>California County Code</SPAN></SPAN></P></TD></TR><TR><TD><P><SPAN><SPAN>COUNTY_FIPS</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Text</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>FIPS (Federal Information Processing Standards) Multiple County coverage. 06 = Ca.</SPAN></SPAN></P></TD></TR><TR><TD><P><SPAN><SPAN>DAU_CODE</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Text</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Detailed Analysis Units Number</SPAN></SPAN></P></TD></TR><TR><TD><P><SPAN><SPAN>DAU_NAME</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Text</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Detailed Analysis Unit Name</SPAN></SPAN></P></TD></TR><TR><TD><P><SPAN><SPAN>DAUCO</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Text</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Detailed Analysis Units Number + California County Code</SPAN></SPAN></P></TD></TR><TR><TD><P><SPAN><SPAN>DAUID_CODE</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Text</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Code</SPAN></SPAN></P></TD></TR><TR><TD><P><SPAN><SPAN>FIPS_MULT_Federal_Information_Procedures_System</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Text</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>FIPS (Federal Information Processing Standards)</SPAN></SPAN></P></TD></TR><TR><TD><P><SPAN><SPAN>HR CODE</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Text</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Hydrologic Regions</SPAN></SPAN></P></TD></TR><TR><TD><P><SPAN><SPAN>HR_NAME</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Text</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Hydrologic Region Name</SPAN></SPAN></P></TD></TR><TR><TD><P><SPAN><SPAN>ISLAND</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Text</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Island description</SPAN></SPAN></P></TD></TR><TR><TD><P><SPAN><SPAN>Island_Y_N</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Text</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Yes/No</SPAN></SPAN></P></TD></TR><TR><TD><P><SPAN><SPAN>IslandName</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Text</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Island Name</SPAN></SPAN></P></TD></TR><TR><TD><P><SPAN><SPAN>PA_LABEL</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Text</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Planning Area Label</SPAN></SPAN></P></TD></TR><TR><TD><P><SPAN><SPAN>PA_NO</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Text</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Planning Area Number</SPAN></SPAN></P></TD></TR><TR><TD><P><SPAN><SPAN>PSA_CODE</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Text</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Historic Planning Area Number</SPAN></SPAN></P></TD></TR><TR><TD><P><SPAN><SPAN>PSA_NAME</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Text</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Historic Planning Area Label</SPAN></SPAN></P></TD></TR><TR><TD><P><SPAN><SPAN>Region</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Text</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>DWR Regional Boundary &amp; Name</SPAN></SPAN></P></TD></TR><TR><TD><P><SPAN><SPAN>Region_Abrev</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Text</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>DWR Regional Boundary &amp; Name Abbreviation</SPAN></SPAN></P></TD></TR><TR><TD><P><SPAN><SPAN>Shape_Area</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Double</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Shape Area- Dynamic</SPAN></SPAN></P></TD></TR><TR><TD><P><SPAN><SPAN>Shape_Length</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Double</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Shape Length - Dynamic</SPAN></SPAN></P></TD></TR><TR><TD><P><SPAN><SPAN>TYPE</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Text</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Land or Water</SPAN></SPAN></P></TD></TR><TR><TD><P><SPAN><SPAN>WATER</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Text</SPAN></SPAN></P></TD><TD><P><SPAN><SPAN>Misc. Bay or Inlet/Pacific Ocean/SF Bay – Coastal Only</SPAN></SPAN></P></TD></TR><TR><TD><P /></TD><TD><P /></TD><TD><P /></TD></TR></TBODY></TABLE><P><SPAN>.............................................................................................................................................</SPAN></P><P><SPAN /></P><P><SPAN STYLE="font-weight:bold;">cnty18_1 metadata Summary:</SPAN></P><P><SPAN>(*See metadata for CAL-FIRE cnty18_1). CAL-FIRE cnty18_1 boundary feature class is used for cartographic purposes, for generating statistical data, and for clipping data. Ideally, state and federal agencies should be using the same framework data for common themes such as county boundaries. This layer provides an initial offering as "best available" at 1:24,000 scale.</SPAN></P><P><SPAN STYLE="font-weight:bold;">cnty18_1 metadata Description:</SPAN></P><P><SPAN>(*See metadata for CAL-FIRE cnty18_1). </SPAN></P><P><SPAN STYLE="font-weight:bold;">cnty18_1 metadata Credits:</SPAN></P><P><SPAN>CAL-FIRE cnty18_1 metadata comment:</SPAN></P><P><SPAN STYLE="font-weight:bold;">This specific dataset </SPAN><SPAN>represents the full detailed county dataset with all coding (islands, inlets, constructed features, etc.). The user has the freedom to use this coding to create definition queries, symbolize, or dissolve to create a more generalized dataset as needed.</SPAN></P><P><SPAN>In November 2015, the dataset was adjusted to include a change in the Yuba-Placer county boundary from 2010 that was not yet included in the 14_1 version of the dataset (ord. No. 5546-B). This change constitutes the difference between the 15_1 and 14_1 versions of this dataset.</SPAN></P><P><SPAN STYLE="font-weight:bold;">In March 2018</SPAN><SPAN>, the dataset was adjusted to include a legal boundary change between Santa Clara and Santa Cruz Counties (December 11, 1998) as stated in Resolution No. 98-11 (Santa Clara) and Resolution No. 432-98 (Santa Cruz). This change constitutes the difference between the 18_1 and 15_1 versions of this dataset.</SPAN></P><P><SPAN>(*</SPAN><SPAN STYLE="font-weight:bold;">See metadata for CAL-FIRE cnty18_1</SPAN><SPAN>). - U.S. Bureau of Reclamation, California Department of Conservation, California Department of Fish and Game, California Department of Forestry and Fire protection</SPAN></P></DIV></DIV></DIV>

Copyright Text: California Department of Water Resources. Michael L. Serna, NRO Jason Harbaugh, NCRO Cynthia Moffett, SCRO Robert Fastenau, SRO

Default Visibility: true

MaxRecordCount: 1000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports ValidateSQL: true

Supports Calculate: true

Supports Datum Transformation: true

Extent:
Drawing Info: Advanced Query Capabilities:
HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: DAU_CODE

Fields: Types:
Capabilities: Query

Sync Can Return Changes: false

Is Data Versioned: false

Supports Rollback On Failure: true

Supports ApplyEdits With Global Ids: false

Supports Query With Historic Moment: false

Supports Coordinates Quantization: true

Child Resources:   Field Groups   Contingent Values

Supported Operations:   Query   Query Analytic   Validate SQL   Generate Renderer   Return Updates   Iteminfo   Thumbnail   Metadata   Update Metadata
