Name: i06_Bathy_NCRO_20190819_DeepWaterShipChannel
Display Field: Feature_Class_Name
Type: Feature Layer
Geometry Type: esriGeometryPoint

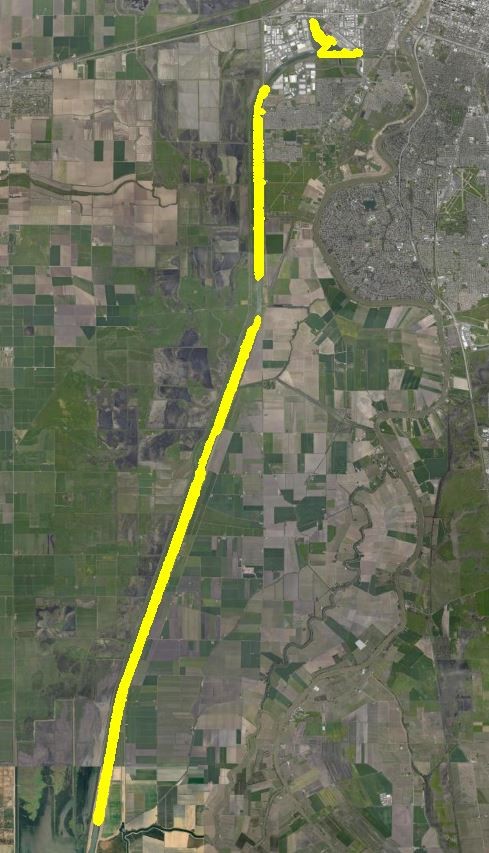

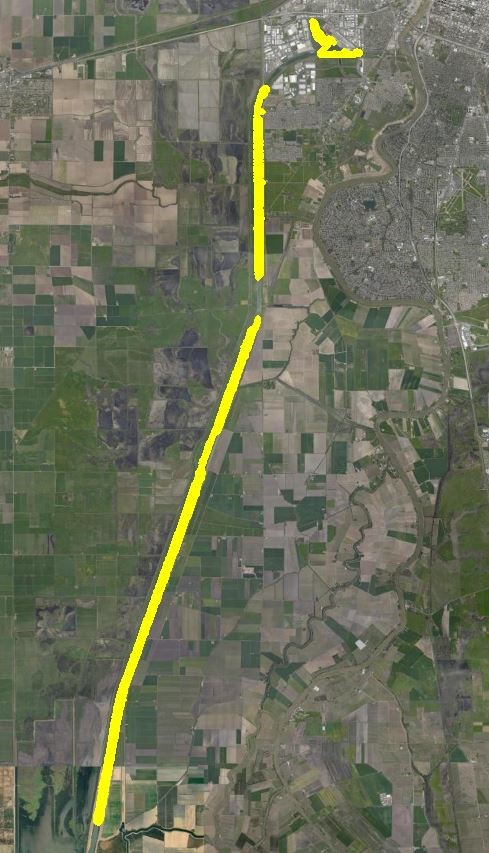

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>The California Department of Water Resources (CA-DWR), North Central Region Office (NCRO), Bathymetry Data Collection Section, conducted a bathymetric survey of selected parts of the Sacramento Deep Water Ship Channel and Lake Washington for the Bay Delta Office (BDO). The main purpose of the data is to obtain elevation data in the shoals to supplement a December 2018 interferometric survey by USGS, to validate other datasets, and to replace outdated and inaccurate data in some areas. A separate multibeam survey was conducted for the Ship Channel headwaters, from the Industrial Blvd. overpass east to the Sacramento River locks. These data will inform modeling efforts to aid in the evaluation of a large number of restoration proposals nearby. </SPAN><SPAN><SPAN>The data were collected in NAD83 (California State Plane Zone II coordinate system) and NAVD88 datums.</SPAN></SPAN></P><P><SPAN>• Survey Dates: August 5-8, 2019 </SPAN></P><P><SPAN>• Instrumentation: Singlebeam echo sounder with Inertially-Aided Post-Processed Kinematic (IAPPK) GPS procedures. </SPAN></P><P><SPAN>• Point Spacing: about 1 Foot</SPAN></P><P><SPAN>• Horizontal Units: US Foot</SPAN></P><P><SPAN>• Vertical Units: US Foot</SPAN></P><P><SPAN>• Related datasets: Sacramento Deep Water Ship Channel Multibeam, August 2019; USGS Sacramento Deep Water Ship Channel Multibeam, December 2018 (EXTERNAL);</SPAN></P></DIV></DIV></DIV>
Copyright Text: California Department of Water Resources, Division of Regional Assistance, North Central Region Office, Hydrography and Technical Support Section.
Default Visibility: true
MaxRecordCount: 2000
Supported Query Formats: JSON, geoJSON, PBF
Min Scale: 0
Max Scale: 0
Supports Advanced Queries: true
Supports Statistics: true
Has Labels: false
Can Modify Layer: true
Can Scale Symbols: false
Use Standardized Queries: true
Supports Datum Transformation: true
Extent:
XMin: -1.3542905238E7
YMin: 4620940.1083
XMax: -1.3529673542E7
YMax: 4660623.556400001
Spatial Reference: 102100
(3857)
Drawing Info:
Renderer:
Class Breaks Renderer:
Field: Z
Min. Value: -9.223372036854776E18
ClassBreakInfos:
-
Class Maximum Value: 9223372036854775807
Label: N/A
Description: N/A
Symbol:
Style: esriSMSCircle
Color: [130, 130, 130, 255]
Size: 2.0
Angle: 0.0
XOffset: 0
YOffset: 0
Outline:
Transparency: 0
Labeling Info:
Advanced Query Capabilities:
Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true
HasZ: true
HasM: false
Has Attachments: false
HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText
Type ID Field: null
Fields:
-
OBJECTID
(
type: esriFieldTypeOID, alias: OBJECTID
)
-
X
(
type: esriFieldTypeDouble, alias: X
)
-
Y
(
type: esriFieldTypeDouble, alias: Y
)
-
Z
(
type: esriFieldTypeDouble, alias: Z
)
-
Source
(
type: esriFieldTypeString, alias: Source, length: 25
)
-
Last_Modified_Date
(
type: esriFieldTypeDate, alias: Last_Modified_Date, length: 8
)
-
Modified_By
(
type: esriFieldTypeString, alias: Modified_By, length: 25
)
-
Date_Data_Refers_To
(
type: esriFieldTypeDate, alias: Date_Data_Refers_To, length: 8
)
-
Data_Format
(
type: esriFieldTypeString, alias: Data_Format, length: 25
)
-
Data_Equipment_Type
(
type: esriFieldTypeString, alias: Data_Equipment_Type, length: 40
)
-
Date_Started
(
type: esriFieldTypeDate, alias: Date_Started, length: 8
)
-
Date_Complete
(
type: esriFieldTypeDate, alias: Date_Complete, length: 8
)
-
Feature_Class_Name
(
type: esriFieldTypeString, alias: Feature_Class_Name, length: 50
)
-
Survey_Report
(
type: esriFieldTypeString, alias: Survey_Report, length: 50
)
-
Comments
(
type: esriFieldTypeString, alias: Comments, length: 100
)
-
Shape
(
type: esriFieldTypeGeometry, alias: Shape
)
Supported Operations:
Query
Query Attachments
Query Analytic
Generate Renderer
Return Updates
Iteminfo
Thumbnail
Metadata
