View In:   ArcGIS Online Map Viewer

Name: i08_C2VSimFG_Element_Centroids

Display Field: ElementID

Type: Feature Layer

Geometry Type: esriGeometryPoint

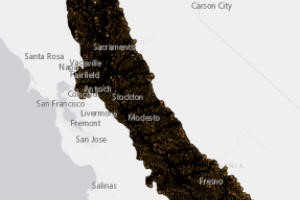

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>There is a total of 32, 537 elements (centroids) within the C2VSimFG model, which make up the finite element mesh of the model. The elements are subdivided into 21 subregions. Each element is composed of corresponding groundwater nodes within the model domain. The model domain area is 20, 742 square miles, and the average element size is roughly 407 acres. The boundaries of the model grid were developed using a set of control points at important locations of the model area. The finite grid mesh was created using GIS and several Excel and FORTRAN utilities. The grid size was refined in areas of higher groundwater gradient and/or areas that are more critical from hydrogeological viewpoints. The grid lines are designed parallel to the streamflow direction, when possible, as well as the groundwater streamlines, to capture the surface and subsurface drainage patterns. Nine major faults in the Central Valley are represented by thin strip of elements of around 500 feet. The dataset excludes three geologic outcrops: Sutter Buttes, Kettleman Hills and Capay Valley Hills, which are areas not included in the Bulletin 118. The dataset is maintained by the Sustainable Groundwater Management Office, Modeling and Tools Support Section.</SPAN></P></DIV></DIV></DIV>

Copyright Text: Department of Water Resources, Sustainable Groundwater Management Office, Modeling and Support Tools Section and the Bay Delta Office, Modeling Support Branch

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports ValidateSQL: true

Supports Calculate: true

Supports Datum Transformation: true

Extent:

XMin: -1.3648545698800001E7
YMin: 4153483.282399997
XMax: -1.32020609135E7
YMax: 4964055.1723000035
Spatial Reference: 102100  (3857)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSMSCircle
Color: [52, 149, 168, 255]
Size: 4.0
Angle: 0.0
XOffset: 0
YOffset: 0
Outline:
[0, 0, 0, 255] Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: true
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: false
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field:

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID, editable: false, nullable: false, defaultValue: null, modelName: OBJECTID )
• ElementID ( type: esriFieldTypeInteger, alias: ElementID, editable: true, nullable: true, defaultValue: null, modelName: ElementID )
• SubRegion ( type: esriFieldTypeInteger, alias: SubRegion, editable: true, nullable: true, defaultValue: null, modelName: SubRegion )
• DateSource ( type: esriFieldTypeString, alias: DateSource, editable: true, nullable: true, length: 255, defaultValue: null, modelName: DateSource )
• EditedDate ( type: esriFieldTypeDate, alias: EditedBy, editable: true, nullable: true, length: 8, defaultValue: null, modelName: EditedDate )
• ModifiedBy ( type: esriFieldTypeString, alias: ModifiedBy, editable: true, nullable: true, length: 255, defaultValue: null, modelName: ModifiedBy )
• RefDate ( type: esriFieldTypeDate, alias: RefDate, editable: true, nullable: true, length: 8, defaultValue: null, modelName: RefDate )
• Comments ( type: esriFieldTypeInteger, alias: Comments, editable: true, nullable: true, defaultValue: null, modelName: Comments )

Templates:

• Name: i08_C2VSimFG_Element_Centroids
  Description:
  Prototype:
  RefDate: null
  ElementID: null
  SubRegion: null
  DateSource: null
  EditedDate: null
  ModifiedBy: null
  Comments: null

  Drawing Tool: esriFeatureEditToolPoint

Capabilities: Query

Sync Can Return Changes: false

Is Data Versioned: false

Supports Rollback On Failure: true

Supports ApplyEdits With Global Ids: false

Supports Query With Historic Moment: false

Supports Coordinates Quantization: true

Child Resources:   Field Groups   Contingent Values

Supported Operations:   Query   Query Analytic   Validate SQL   Generate Renderer   Return Updates   Iteminfo   Thumbnail   Metadata   Update Metadata
