Name: i08_C2VSimFG_Elements

Display Field: ElementID

Type: Feature Layer

Geometry Type: esriGeometryPolygon

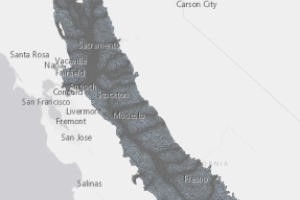

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>There is a total of 32, 537 elements within the C2VSimFG model, which make-up the finite grid mesh of the model. The elements are subdivided into 21 subregions. Each element is composed of corresponding groundwater nodes within the model domain. The model domain area is 20, 742 square miles, and each element is roughly 407 acres. The boundaries of the model grid were developed using a set of control points at important locations of the model area. The finite element mesh was created using GIS and several Excel and FORTRAN utilities. The grid size was refined in areas of higher groundwater gradient and/or areas that are more critical from hydrogeological viewpoints. The grid lines are designed parallel to the streamflow direction, when possible, as well as the groundwater streamlines, to capture the surface and subsurface drainage patterns. Nine major faults in the Central Valley are represented by thin strip of elements of around 500 feet. The dataset excludes three geologic outcrops: Sutter Buttes, Kettleman Hills and Capay Valley Hills, which are areas not included in the Bulletin 118. The dataset is maintained by the Sustainable Groundwater Management Office, Modeling and Tools Support Section. The areas calculated for this data using the WGS 1984 Web Mercator projection may not reflect the actual areas used in the C2VSimFG model.</SPAN></P></DIV></DIV></DIV>

Copyright Text: Department of Water Resources, Sustainable Groundwater Management Office, Modeling and Support Tools Section and the Bay Delta Office, Modeling Support Branch

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -1.36507105057E7
YMin: 4151709.5034999996
XMax: -1.32005113286E7
YMax: 4964919.854599997
Spatial Reference: 102100  (3857)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSFSSolid
Color: [250, 196, 252, 0]
Outline:
Style: esriSLSSolid
Color: [110, 110, 110, 255]
Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• ElementID ( type: esriFieldTypeInteger, alias: ElementID )
• SubRegion ( type: esriFieldTypeInteger, alias: SubRegion )
• Data_Source ( type: esriFieldTypeString, alias: Data_Source, length: 255 )
• Edited_Date ( type: esriFieldTypeDate, alias: Edited_Date, length: 8 )
• Modified_By ( type: esriFieldTypeString, alias: Modified_By, length: 255 )
• Ref_Date ( type: esriFieldTypeDate, alias: Ref_Date, length: 8 )
• Comments ( type: esriFieldTypeString, alias: Comments, length: 255 )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• Shape.STArea() ( type: esriFieldTypeDouble, alias: Shape.STArea() )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
